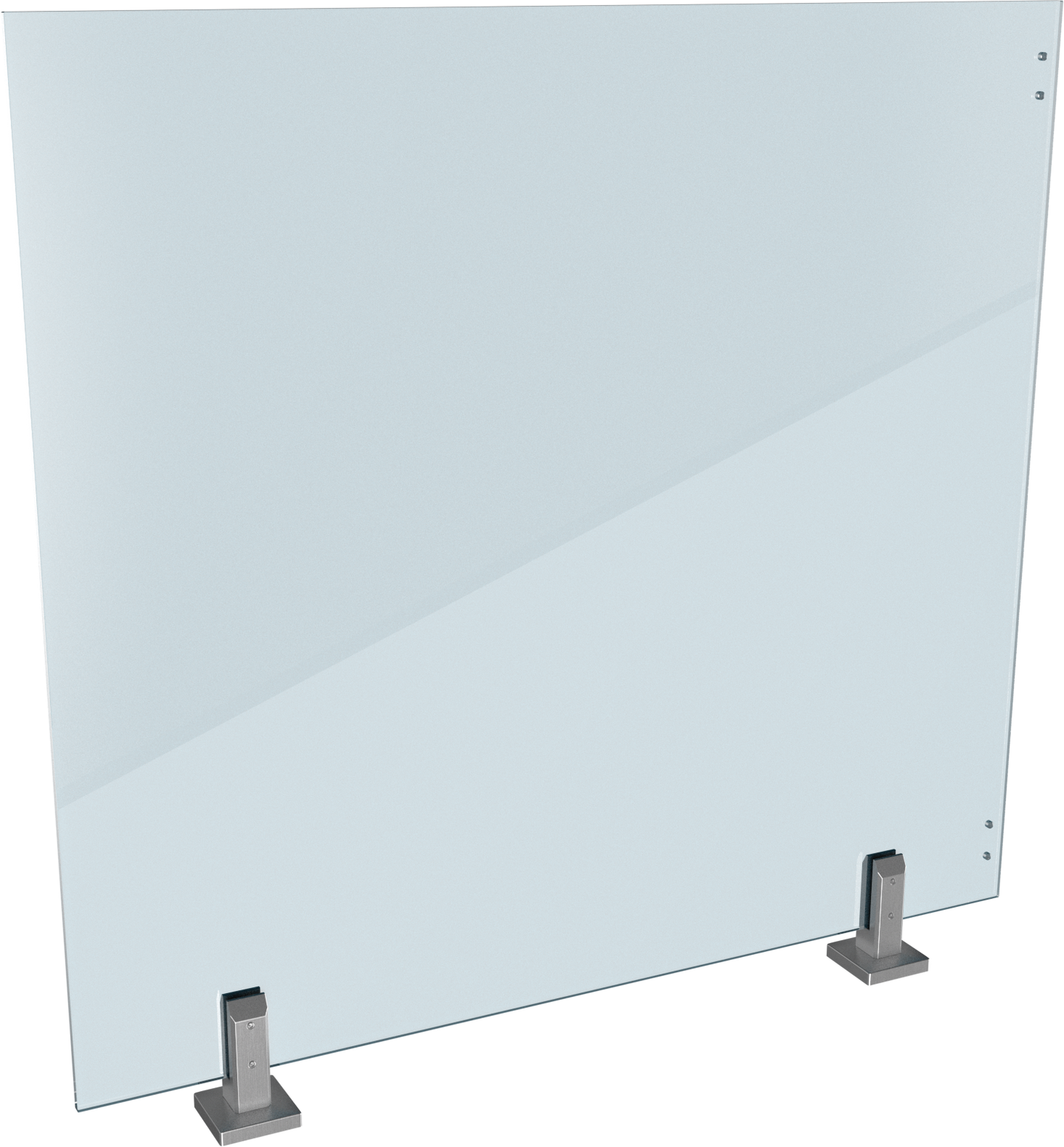

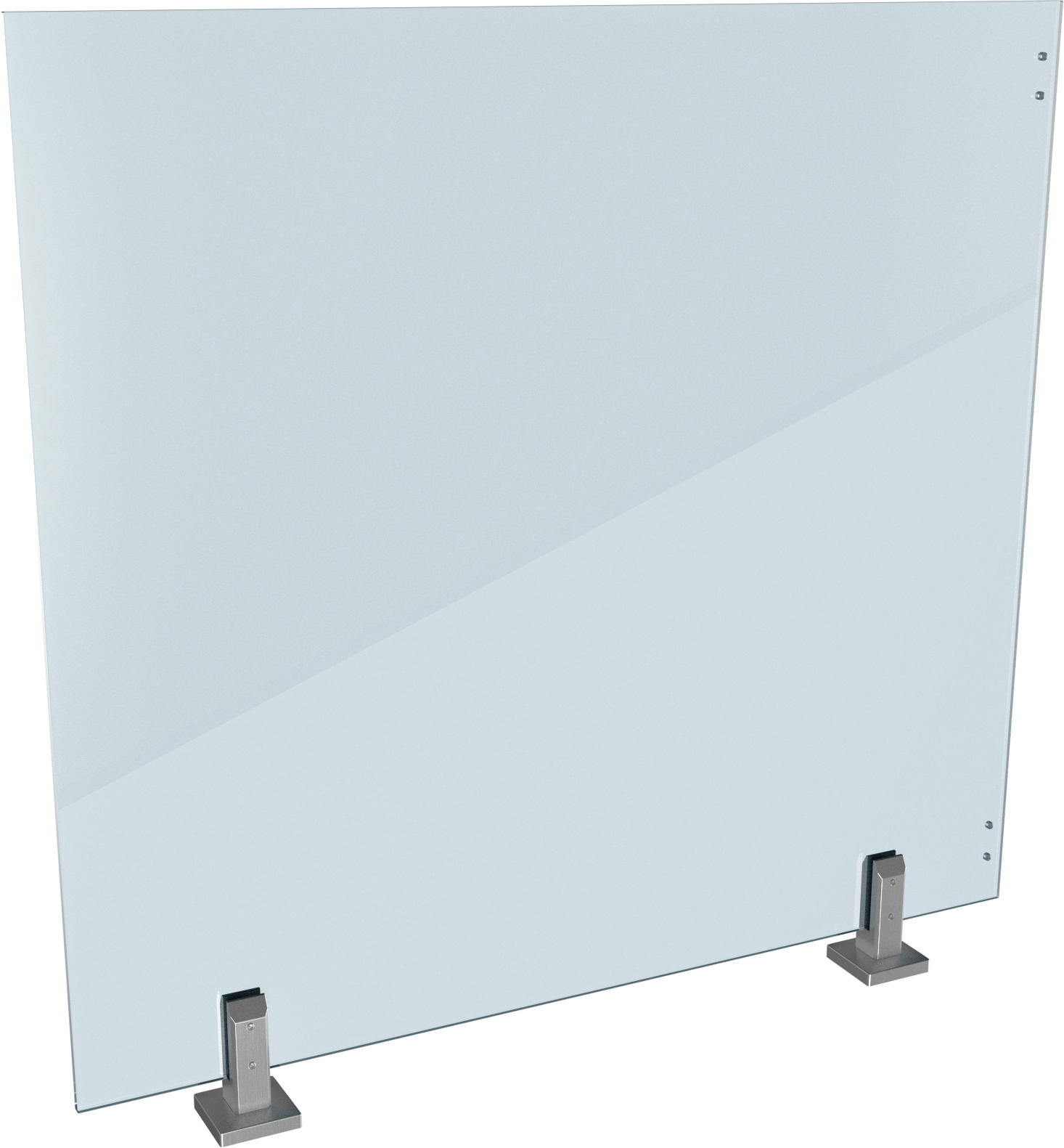

12mm Master Range Hinge Panel | Toughened Glass | Pool Fencing

A 12mm thick clear toughened glass hinge panel designed for frameless pool fencing installations. Available in 11 widths to suit the majority of installation configurations, with pre-drilled holes to match Master Range and Polaris 155 Series hinge hardware.

With 5mm radius corners and pre-drilled hinge holes, these panels are ready to install straight out of the box alongside your chosen hardware.

Specifications:

• Thickness: 12mm clear toughened glass

• Height: 1200mm

• Widths available: 600mm to 1800mm (11 widths)

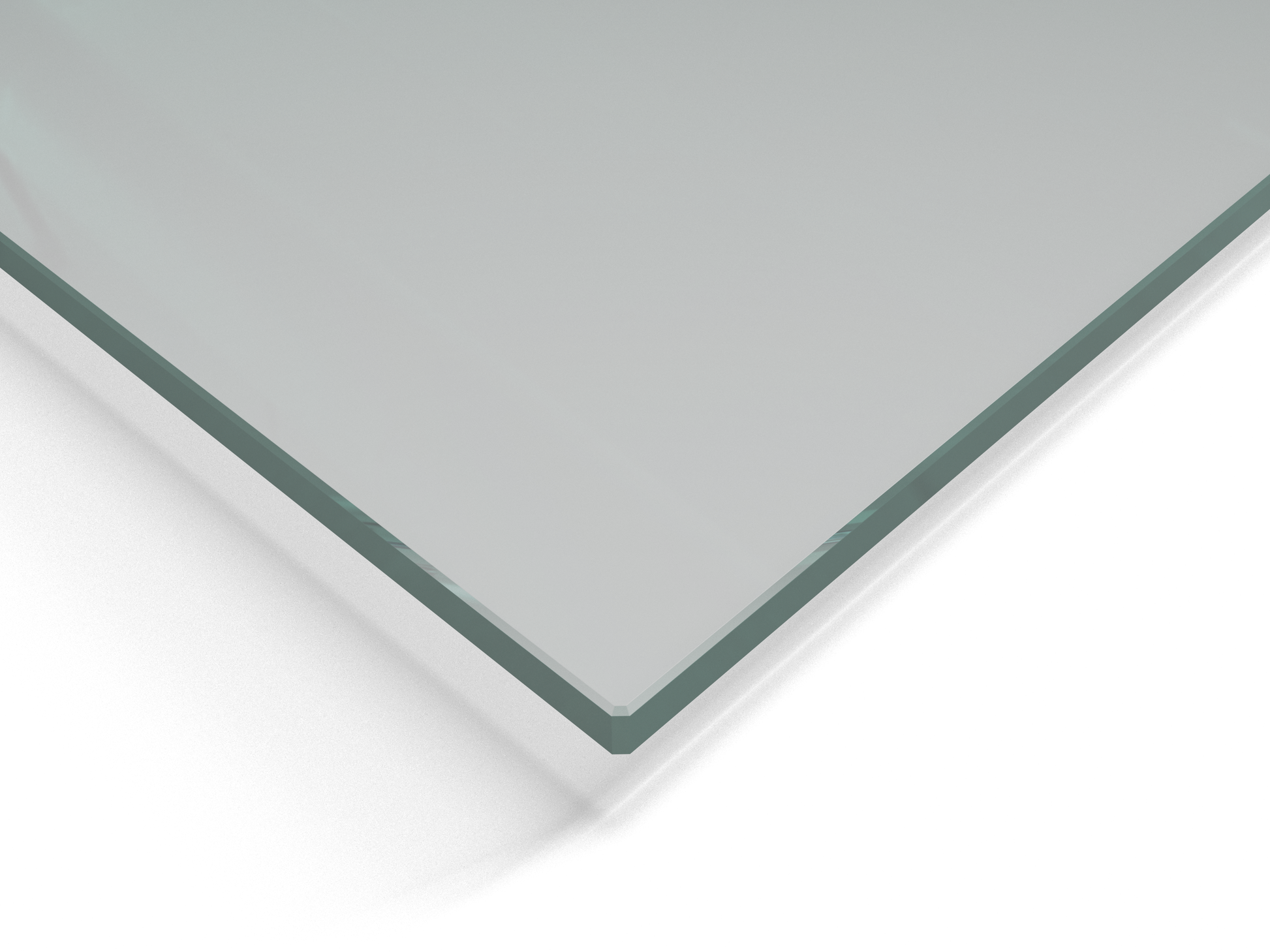

• Corner radius: 5mm

• Pre-drilled holes: 4 x 14mm diameter hinge holes

• Suits Master Range hinges and latches

• Suits Polaris 155 Series hinges

• Note: 600mm and 800mm wide panels must be braced to wall, post or another glass panel with glass clamps or rigi clamps

Before ordering:

Spigots, hinges, latches and posts sold separately. Select your width to suit your installation configuration. Not sure what width or configuration suits your pool? Send us a message before ordering and we’ll help you work it out.
