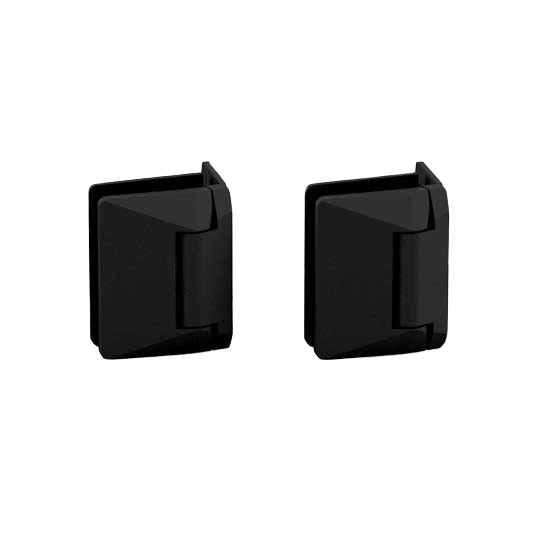

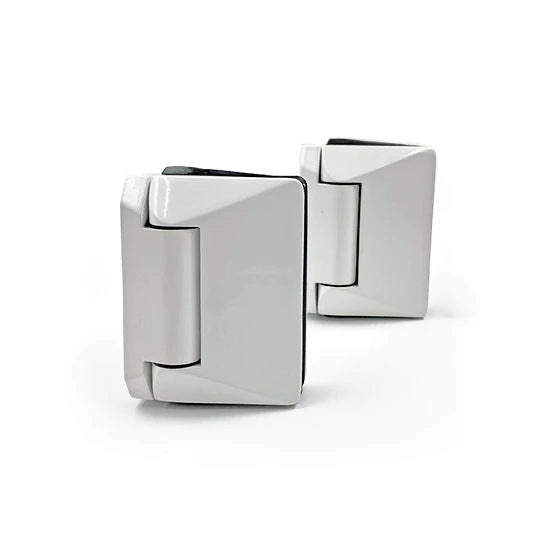

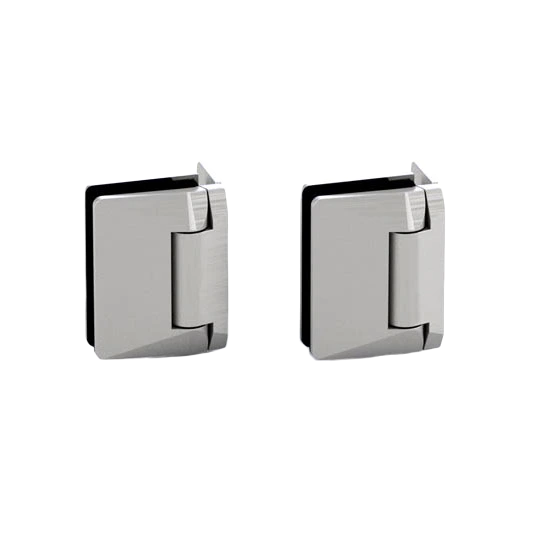

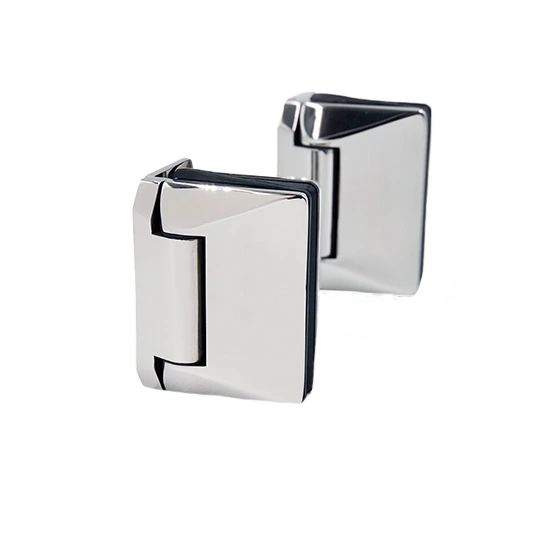

Atlantic 530 Series Soft Close Wall to Glass Pool Gate Hinge | SS2205 | Black, White, Satin & Polish

The same premium soft close function as the Atlantic 530 glass to glass hinge - built for wall and post mounting instead.

Whether you’re connecting to a timber post, a metal post or a wall, the 530 Series wall to glass hinge gives you four fixing points for a secure connection with minimal visible hardware. The modern minimalist profile and anti-toe hold design meet pool fence compliance requirements without compromising the clean look of a frameless glass gate entrance.

No backing plate removal required for installation. Fast, clean and built to last over 10 years with a 4 year warranty.

Note - if you’re mounting to a 50mm post a backing plate may be required to achieve proper clearance. Check your post dimensions before ordering and contact us if you’re unsure.

Specifications:

• Material: SS2205 grade duplex stainless steel
• Style: Wall to glass - suits timber posts, metal posts and walls
• Series: Atlantic 530
• Fixing points: 4 x holes to wall or post
• Gate weight: Suits gates up to 70kg per pair
• Glass thickness: Suits 10mm and 12mm glass
• Compliance: Pool fence compliant self closing hinge
• Anti-toe hold: Yes - modern minimalist design
• Warranty: 4 years - designed to last 10 years plus
• Finishes: Matte black, white, satin, polish stainless
• Installation: No backing plate removal required - backing plate may be needed for 50mm posts

Sold as a pair.

Not sure if the Atlantic 530 wall to glass suits your post or wall setup? Send us a message with your post dimensions and we’ll confirm what you need before you order.
