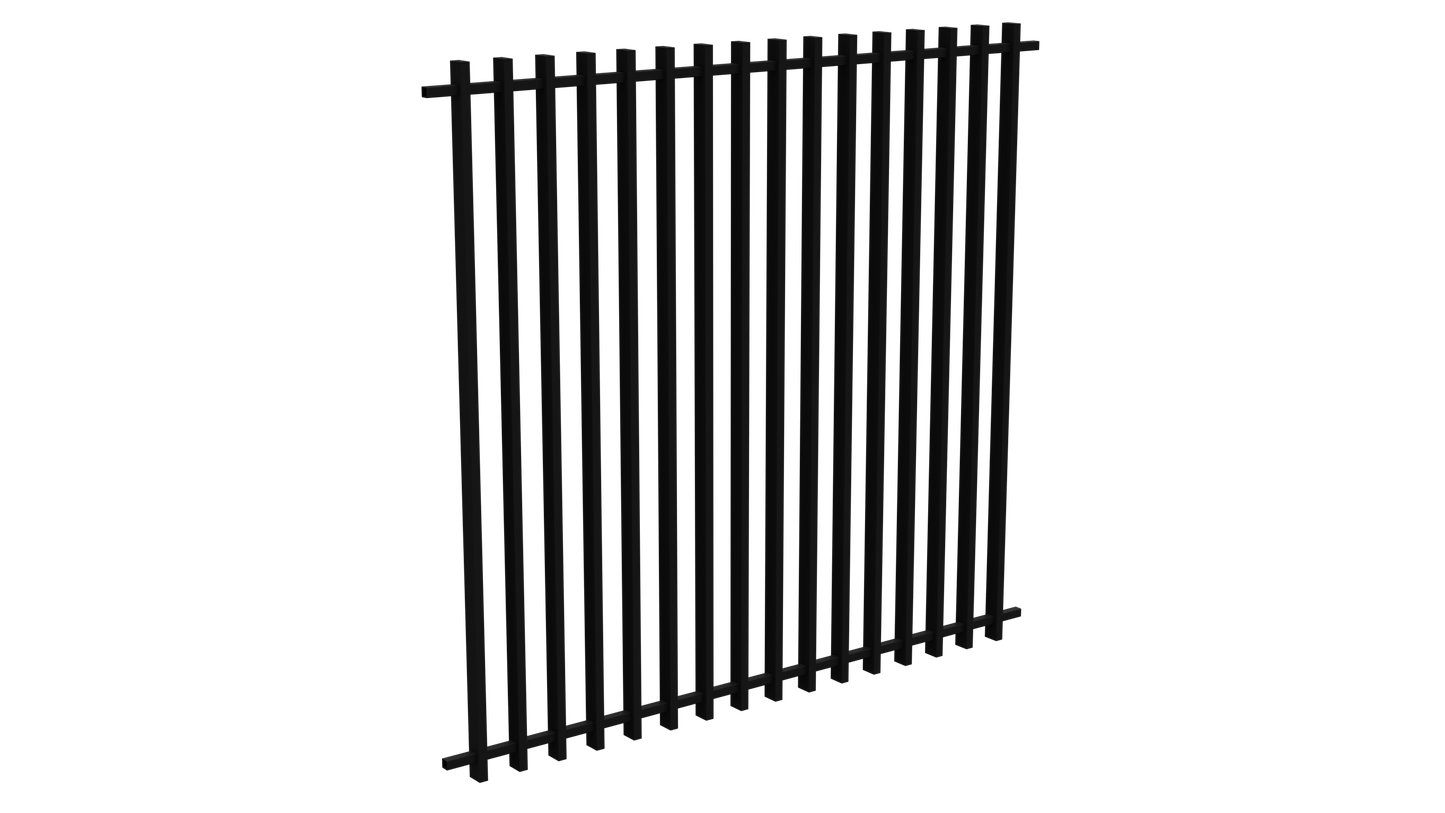

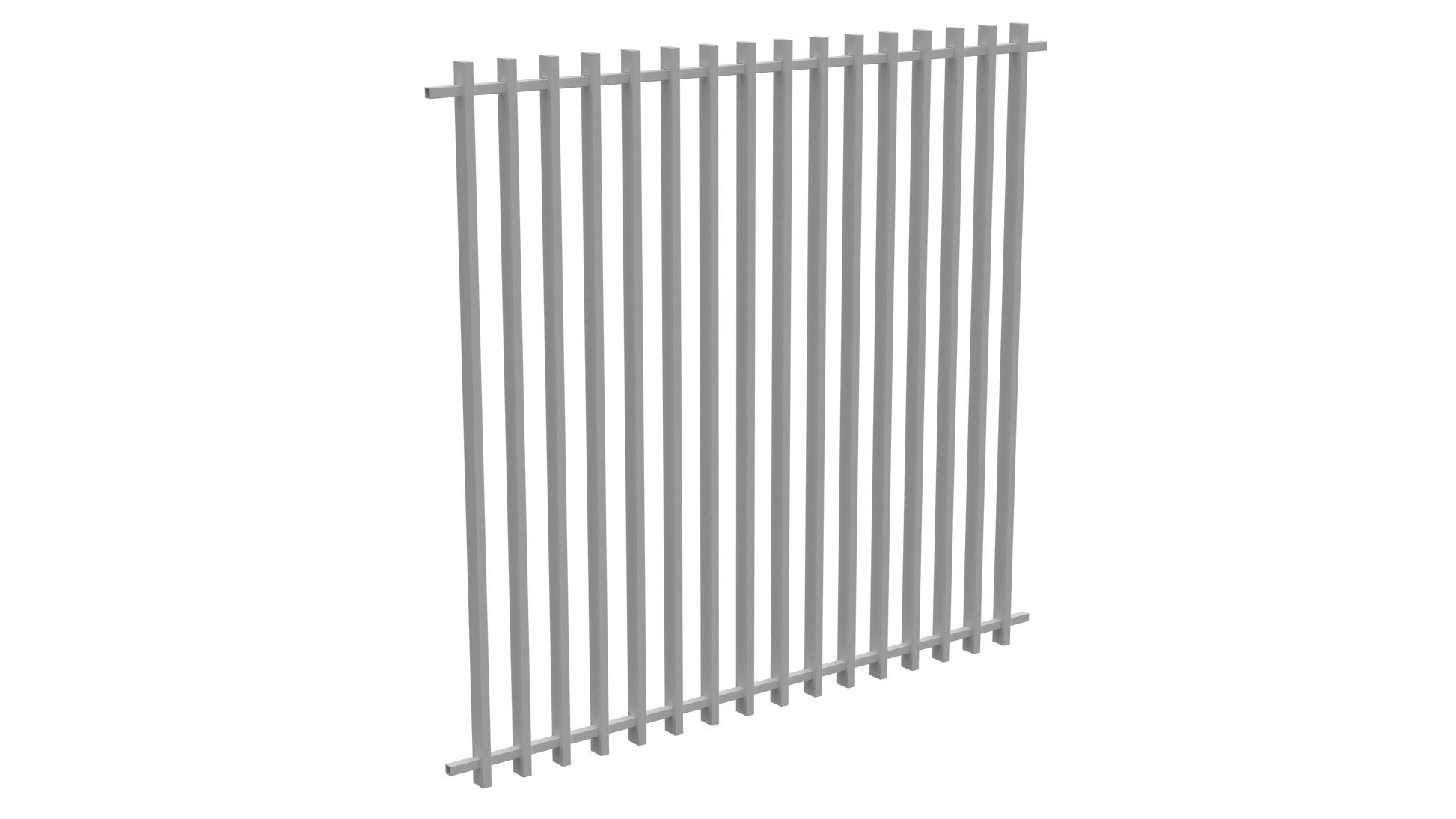

BARR Batten Aluminium Fence Panel | 1969mm W x 1800mm H | White & Black

The BARR Batten gate is built to the exact standard as the panels, because a gate that looks or feels different to the fence it sits in is a gate that lets the whole installation down.

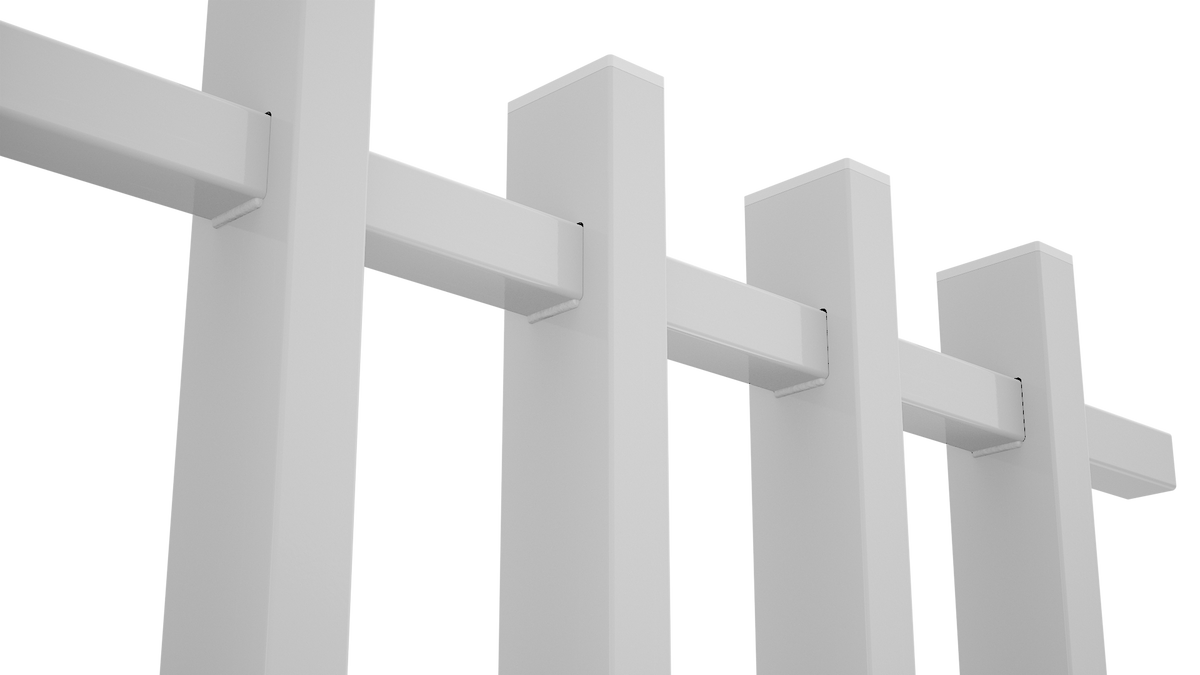

50x25mm punched pickets, horizontal rails passing through the centre of each picket, and four sided welding at every rail to stile junction. One of the strongest aluminium gate constructions available at this price point.

At 1800mm high, this gate matches your 1800mm BARR panels for a seamless finish across your fence line, suited to privacy screening, feature fencing and pool fence applications requiring a taller gate for specific configurations or clear span requirements. All 975mm wide as standard. Need a different width? Gate converters are available to suit, ask us before ordering.

Specifications:

• Dimensions: 1969mm W x 1800mm H
• Material: Aluminium alloy 6061-T6
• Picket profile: 50x25mm with 25mm front facing edge
• Rail: 25x25x2.8mm horizontal top and bottom
• Construction: Rails pass through punched pickets, welded finish
• Top cap: Pre-inserted in each picket
• Adjustable: Panel easily cut down in width on site

Before ordering:

Posts, hinges and latches sold separately.

For pool fencing applications at 1800mm, confirm your specific configuration meets compliance requirements with your local council or inspector before ordering.

Not sure what you need? Send us a message with your measurements and we’ll help you work it out before you order.
