12mm Raked Glass Pool Fence Panel | Retaining Walls & Steps | AS/NZS2208 Compliant

Steps, retaining walls and level changes are where standard pool fence panels stop working. The raked panel is how you solve it.

Where the ground drops away - a deck, a retaining wall, a step down to the pool - a vertical panel creates a gap at the top that fails compliance. The raked profile eliminates that gap by following the angle of the surface change while keeping the panel height above 1200mm at its lowest point. Compliance achieved cleanly, without custom cutting or site modifications.

These panels are the most affordable and practical solution for overcoming level changes around a pool fence run. Off the shelf, ready to install, and available in five heights to match whatever drop you’re working with.

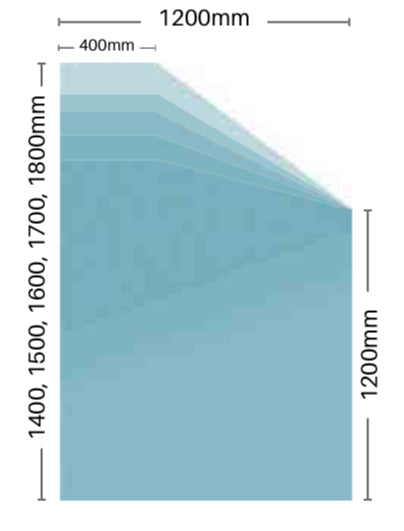

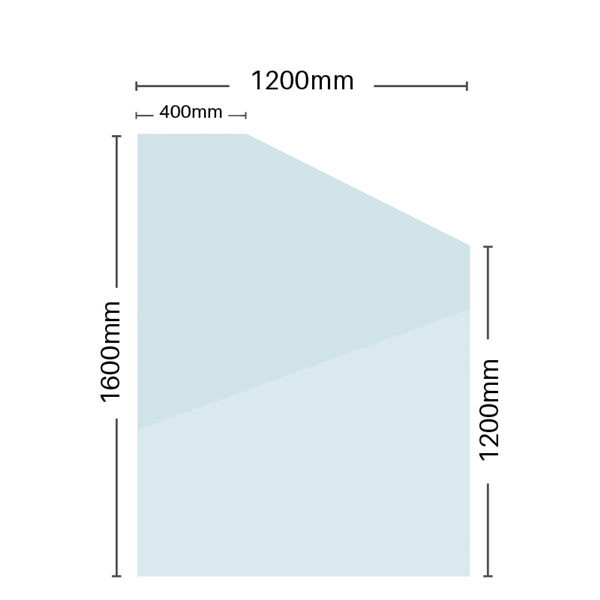

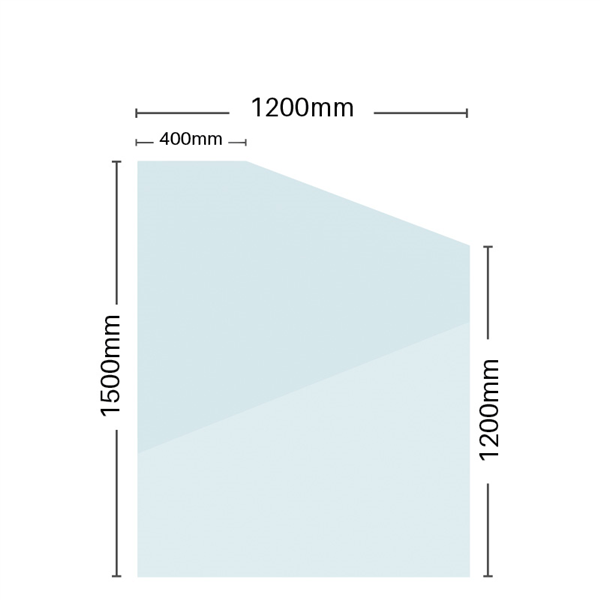

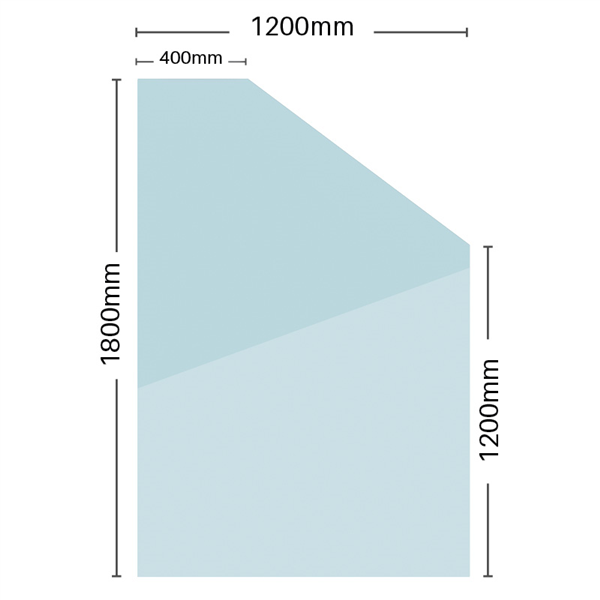

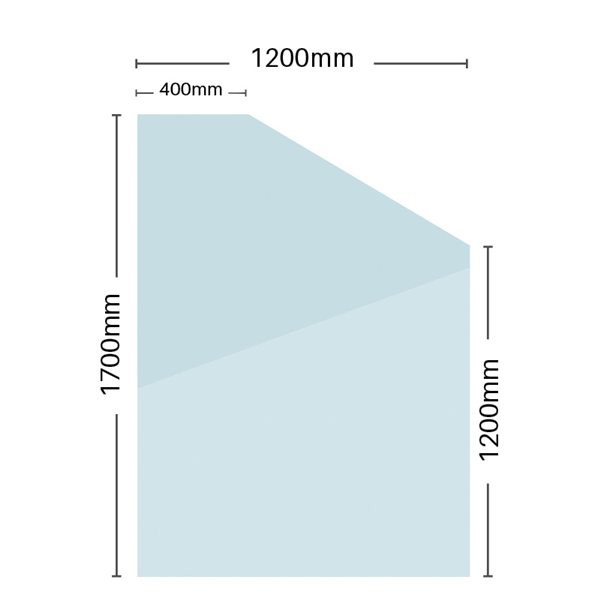

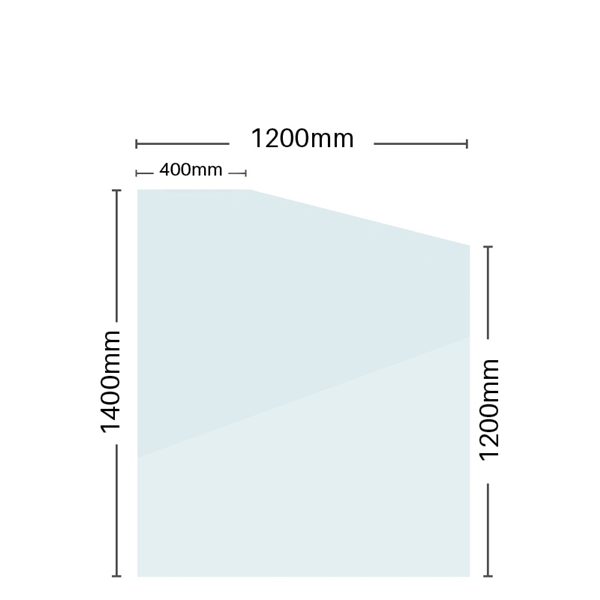

The diagram below shows the panel geometry - 1200mm wide with a 400mm rake taken from the top corner. Select the height that puts your lowest point at or above 1200mm above the surface below.

Specifications:

• Glass thickness: 12mm clear toughened
• Width: 1200mm
• Heights available: 1400mm, 1500mm, 1600mm, 1700mm, 1800mm
• Rake: 400mm from top corner

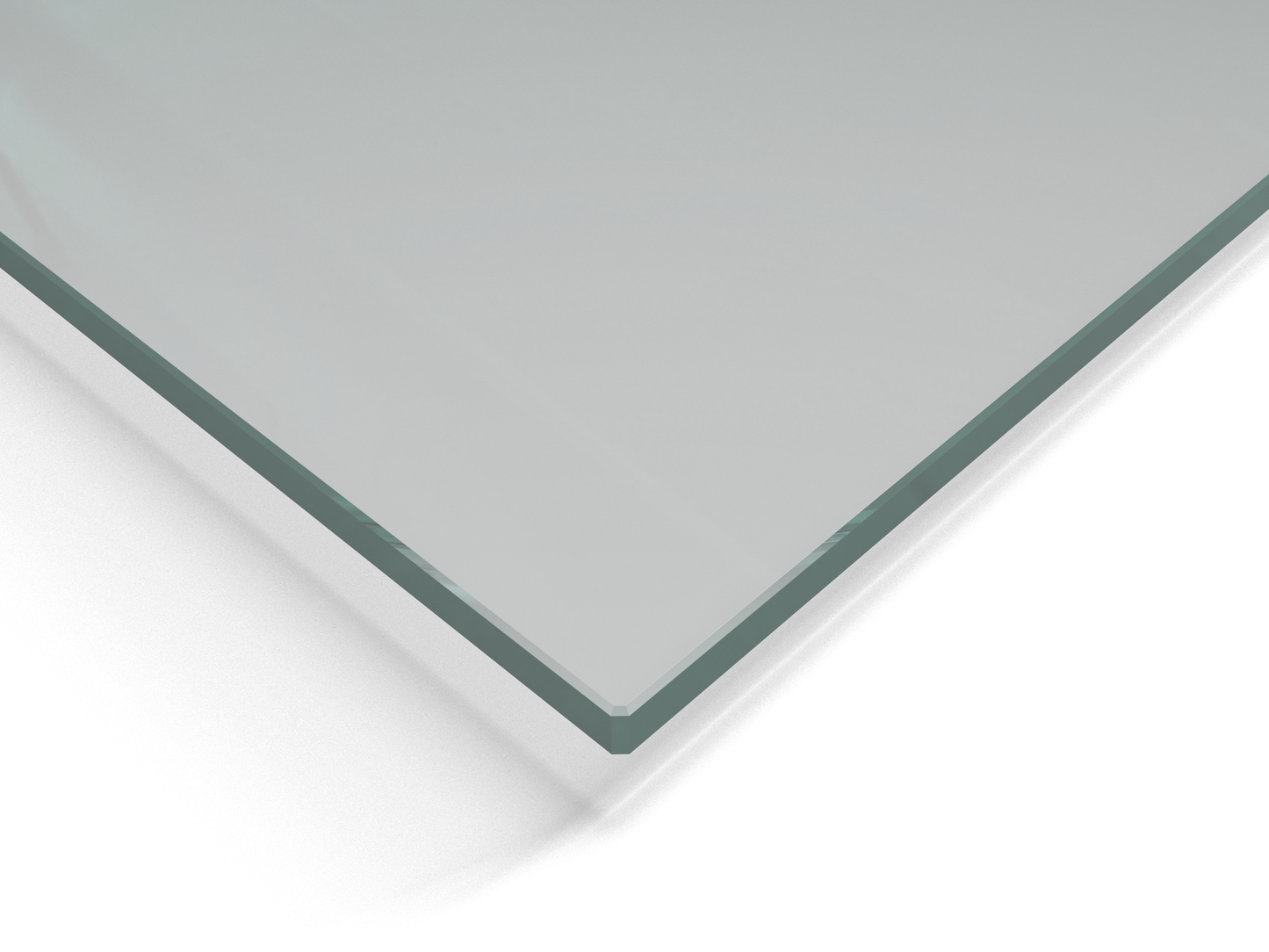

• Corner profile: 5mm radius
• Holes: None - friction fit spigots only
• Edge finish: Superior polished finish
• Compliance: AS/NZS2208 Australian standard
• Packing: Corner protectors included
• Perth orders: Panels pre-wrapped in cardboard for additional transit protection

Not sure which height suits your step or retaining wall height? Send us a message with your measurements and we’ll help you work out the right size before you order.
