Glass to Glass Internal 90 Degree Corner Latch Kit | SS316 | 8mm, 10mm & 12mm Glass | Black, White, Satin & Polish

The latch for glass pool gate installations where the gate swings inward into an internal corner - a 90 degree glass to glass configuration requiring a different latch geometry to the external corner or 180 degree options.

Built from SS316 stainless steel with polymer components for long term corrosion resistance in pool and outdoor environments. The nylon pull latch operates from the outside of the gate and mounts directly to the latch panel via SS316 backing plates for a secure, rattle free hold. No latch holes are required in the glass - a clean result with no drilling on the latch panel side.

Suits 8mm, 10mm and 12mm glass gates. Note - the latch panel must be 12mm thick.

Specifications:

• Material: SS316 stainless steel with polymer components
• Style: Glass to glass - internal 90 degree corner
• Latch operation: Nylon pull latch - outside of gate
• Latch panel: No holes required - SS316 backing plates
• Gate glass thickness: Suits 8mm, 10mm and 12mm
• Latch panel requirement: Must be 12mm thick

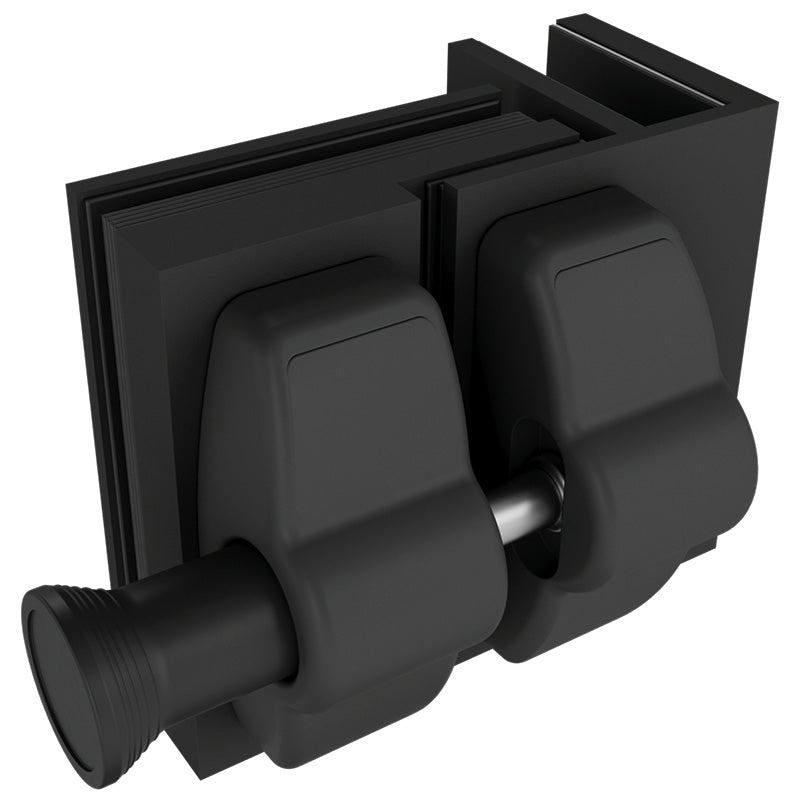

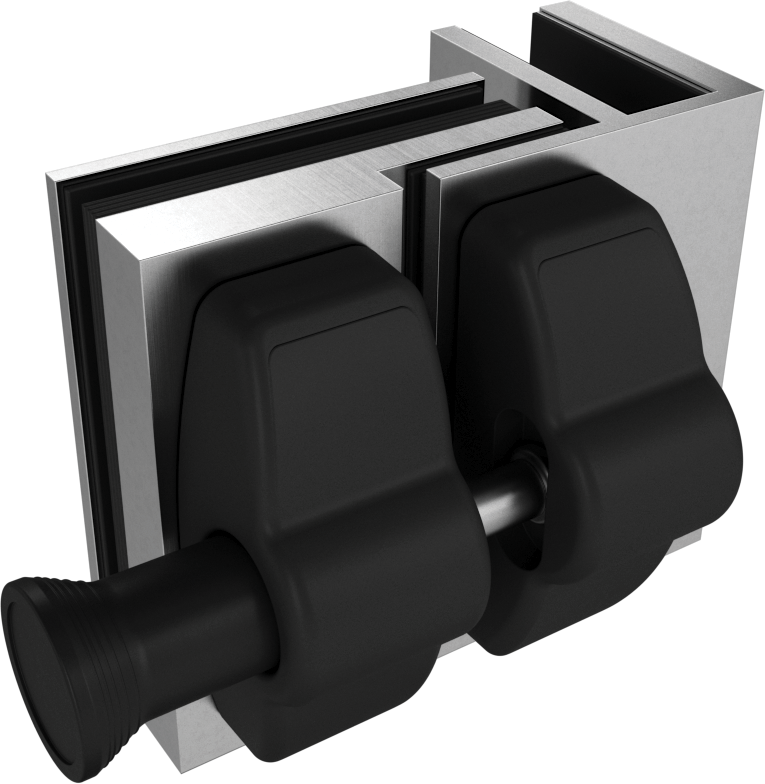

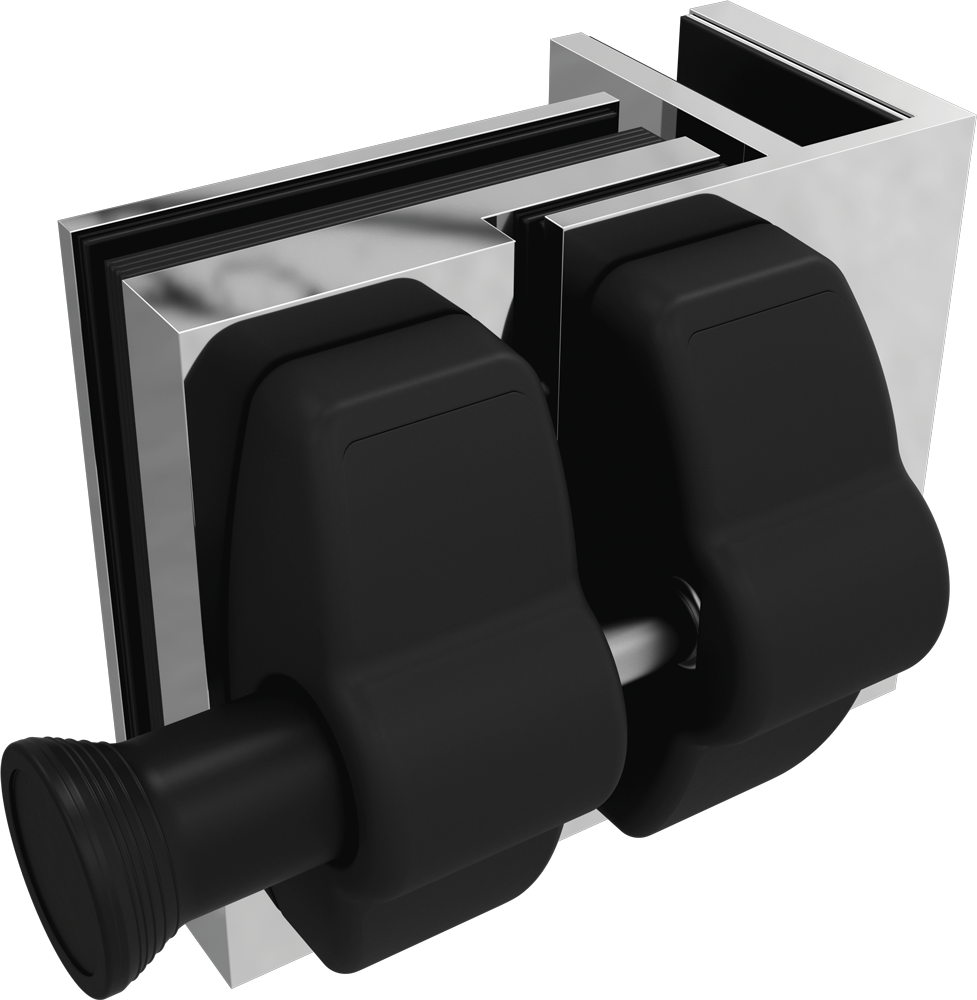

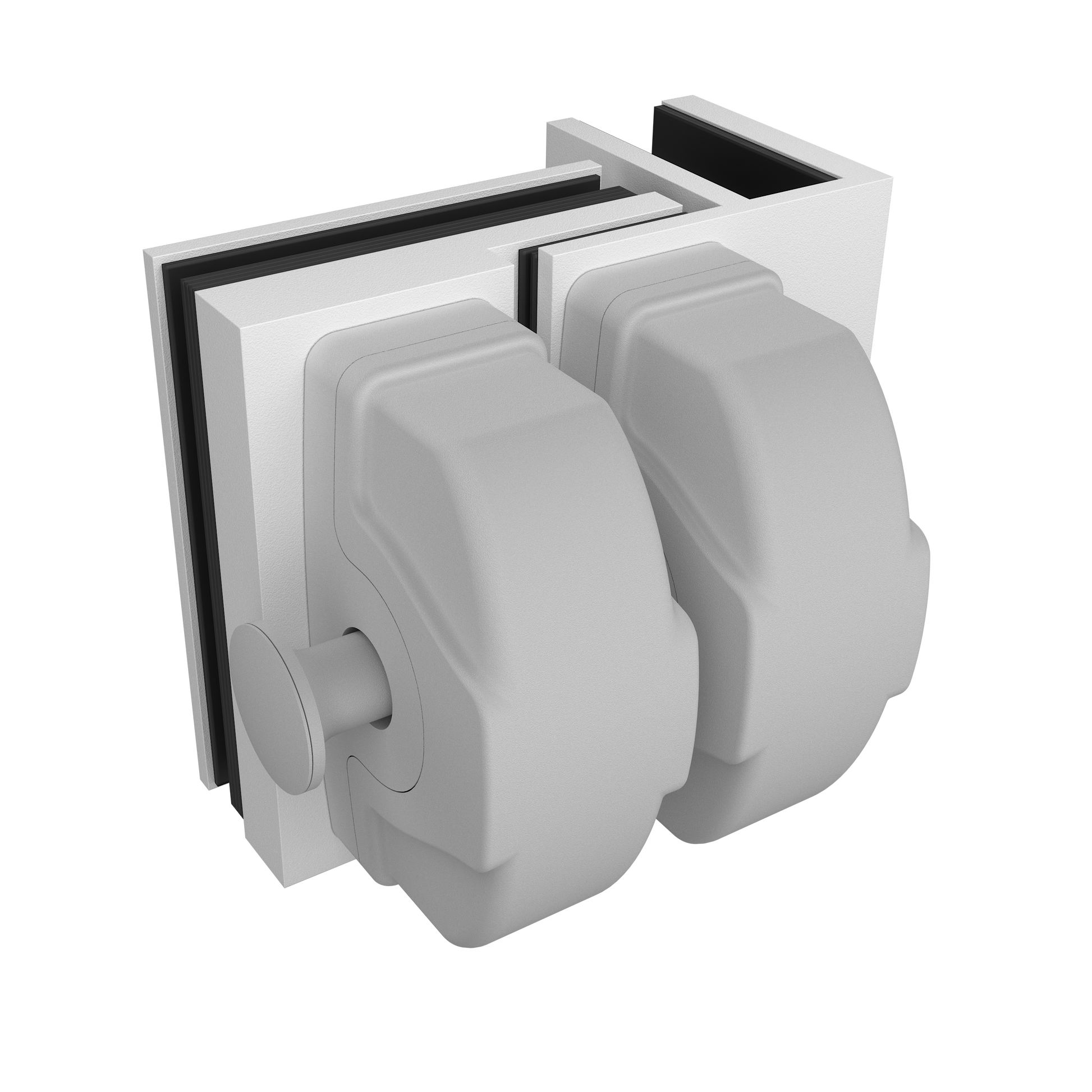

• Finishes available: Matte black, white, polish, satin

Sold as a kit - includes all components for a complete installation.

Not sure if this latch suits your gate configuration? Send us a message with your gate layout and glass thickness and we’ll confirm the right option before you order.
