Polaris 156 Series Soft Close Gate Hinge | Timber & Metal | Pool Fence Compliant

The 156 Series is built around an adaptive fixing design that gives you 6 fixing points per side - use as many or as few as your installation requires. Whether you’re fixing through a gate frame, a timber post, a metal post or a combination of all three - there’s a configuration that works without modification or compromise.

The interchangeable damper system is what separates the 156 from standard soft close hinges. Different gates have different weights and different closing requirements. Rather than being locked into one closing force - you swap the damper and dial in exactly the response you need. The QUIK-ADJUST ratchet cap handles fine tuning from there.

Built from 2205 Duplex Stainless Steel with high quality polycarbonate ABS blend covers that handle UV, salt air and harsh Australian conditions without fading or cracking. The covers hide all screw fixings for a clean finished look - and if you want to match a specific colour, any acrylic spray paint bonds directly to the cover surface.

Specifications:

• Material: 2205 Duplex Stainless Steel
• Covers: Black polycarbonate ABS blend - paintable with acrylic spray

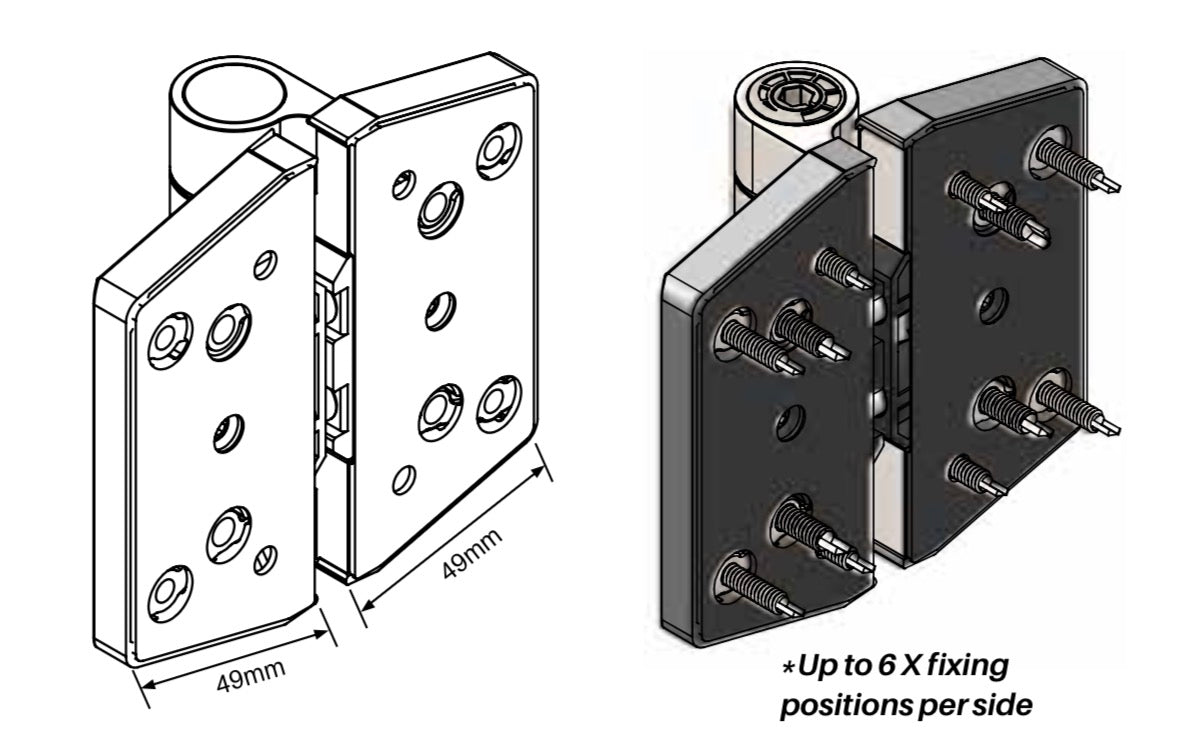

• Fixing points: 6 per side - use 2 or more as required
• Closing mechanism: Patented Polaris soft close with QUIK-ADJUST ratchet cap
• Dampers: Interchangeable for customised closing force
• Gate weight: Self closing gates up to 45kg per pair
• Compliance: Pool fencing compliant self closing hinge
• Includes: Screw fixings and fixing template

Suits timber posts, metal posts and gate frames. Adaptable to virtually any hinged gate assembly.

Not sure if the 156 Series suits your gate setup? Send us a message with your gate material, weight and post type and we’ll confirm compatibility before you order.
