Premium Perf U Channel | Panel Installation Method

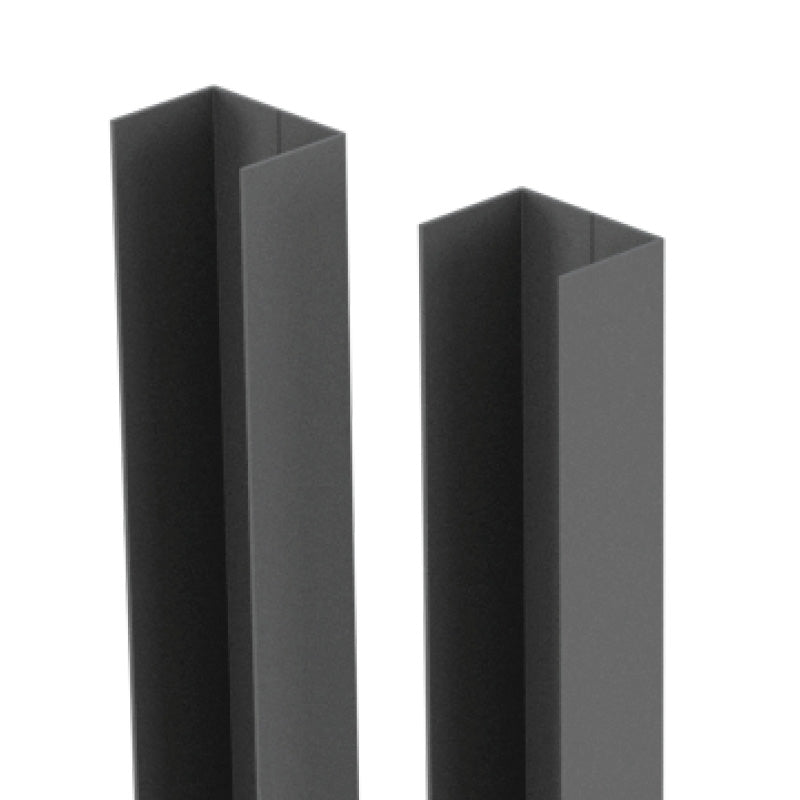

The U channel installation method is an alternative to bracket fixing for your Premium Perf framed panels. Instead of using horizontal brackets to fix the framed panel to posts, U channels are fixed directly to each post and the assembled framed panel slides neatly inside them for a clean, concealed fixing result.

Refer to the photos above to see the difference between U channel and bracket installation methods before ordering.

Note: The frame kit is still required for both installation methods. U channel replaces the brackets only, not the frame kit. Not suitable for transitional panels.

Specifications:

• Material: Marine grade aluminium
• Finish: Akzo Nobel powder coat - black or monument texture
• Pack of 2, suits one panel span
• Suits 38mm x 25mm framed panel profile
• Fixed directly to 50x50mm aluminium posts
• Max panel width when using U channel installation: 1312mm
• Not suitable for transitional panel installations

Before ordering:

U channel suits standard and palm design panels only. Frame kit must still be purchased separately.

Not sure which installation method suits your setup? Send us a message before ordering and we’ll help you work it out.
