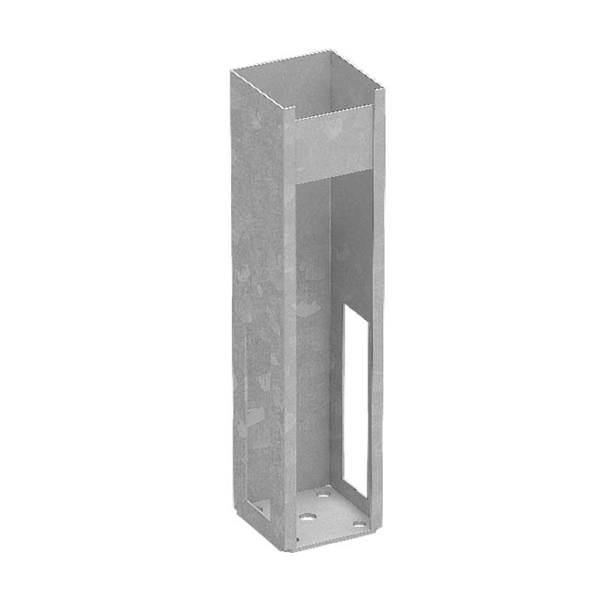

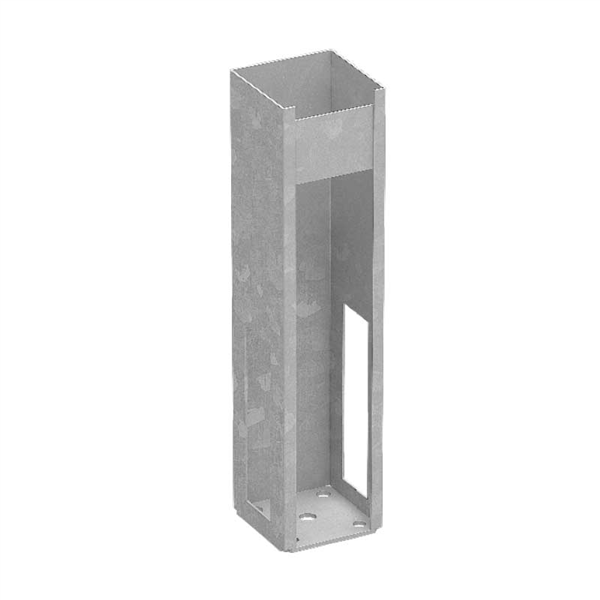

PVC Fence Post Concealed Base Plate | Surface Mount | 102mm & 127mm | Galvanised Steel

For installations onto concrete or decking where digging a post hole isn’t possible, this concealed base plate fixes your PVC fence post directly to the surface - with the steel plate hidden inside the post once installed for a clean, uninterrupted finish.

The post slides over the base plate and is screwed into place, with a 2 part domical cover fitted afterward to conceal the screws completely.

Specifications:

• 127mm post size (full privacy, combo, 3 rail): 620mm standard height or 1750mm heavy duty height for gate post hinge and latch use

• 102mm post size (vertical paling, semi privacy): 616mm standard height or 1150mm heavy duty height for gate post hinge and latch use

• Material: Cold-galvanised steel - 6mm thick base plate with 2mm thick vertical walls

• Fixing holes: 4 per base plate

• Heavy duty height suits 1-way posts only - used where a post needs to act as a hinge or latch point

• 615/620mm not suitable for use with the standard 1-way gate post - use the heavy duty height base plate for surface mount hinge and latch applications

Before ordering:

Base plate installations are not suitable for wind load areas. Fixings for mounting to your surface are not supplied. Installation guidance available on request. Not sure which size or height suits your install? Send us a message before ordering and we’ll help you confirm.
