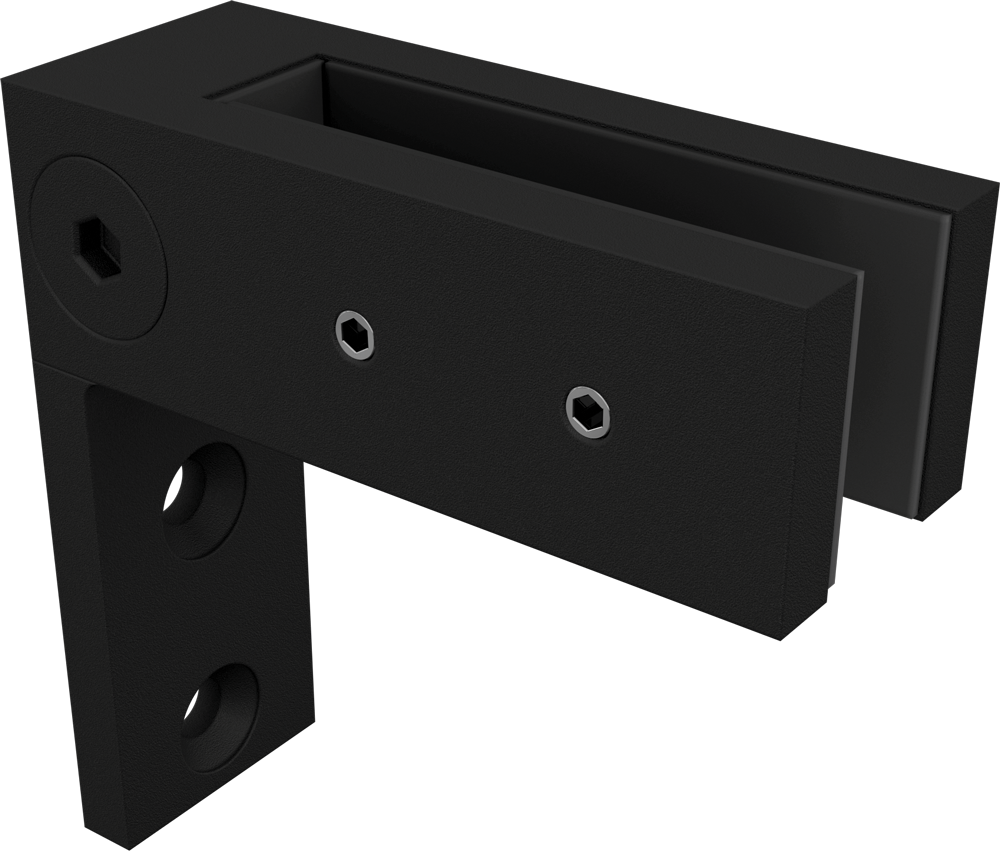

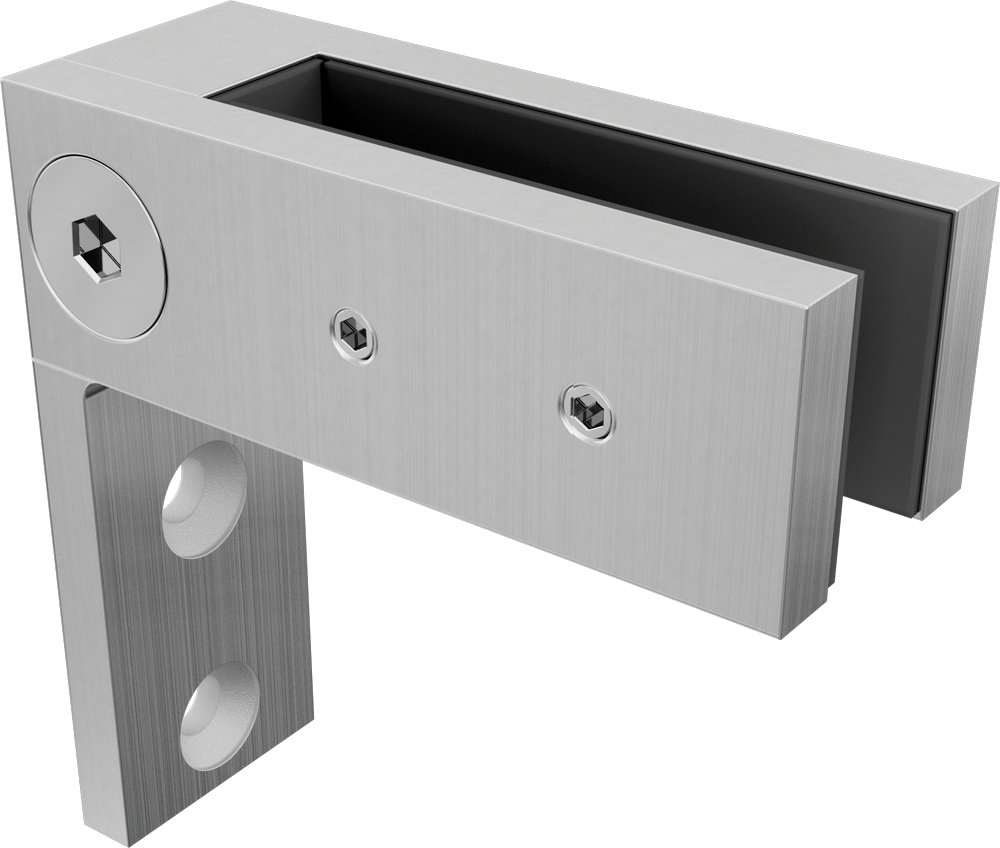

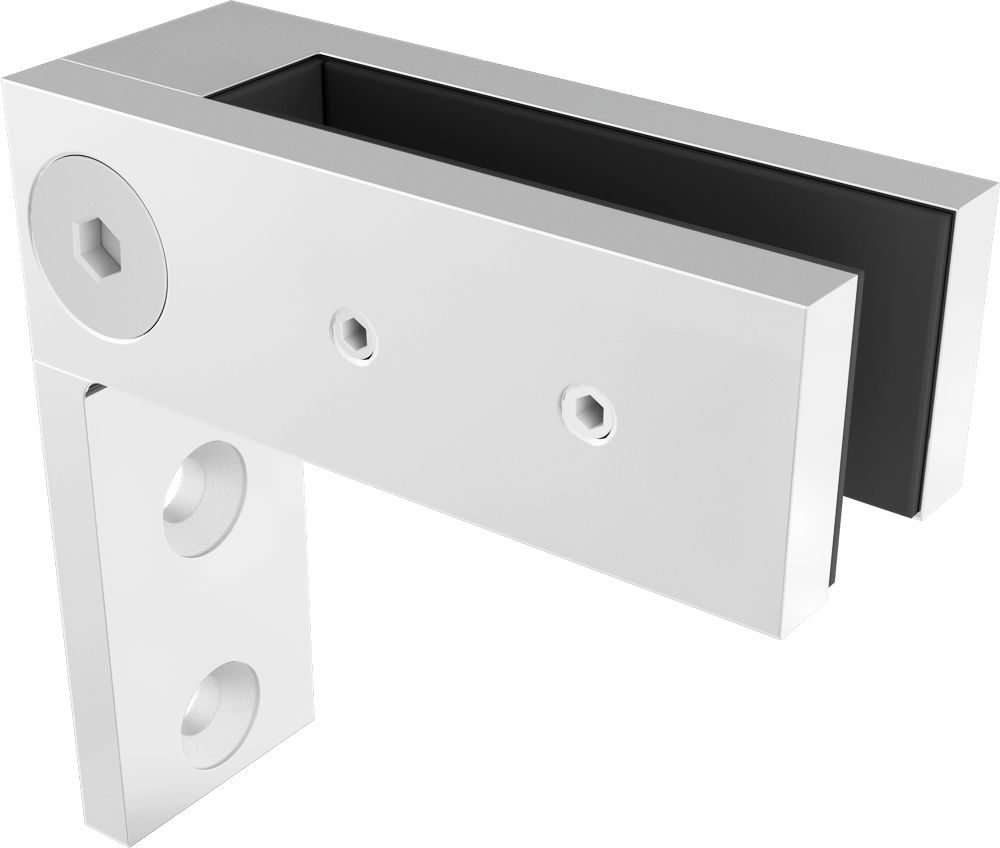

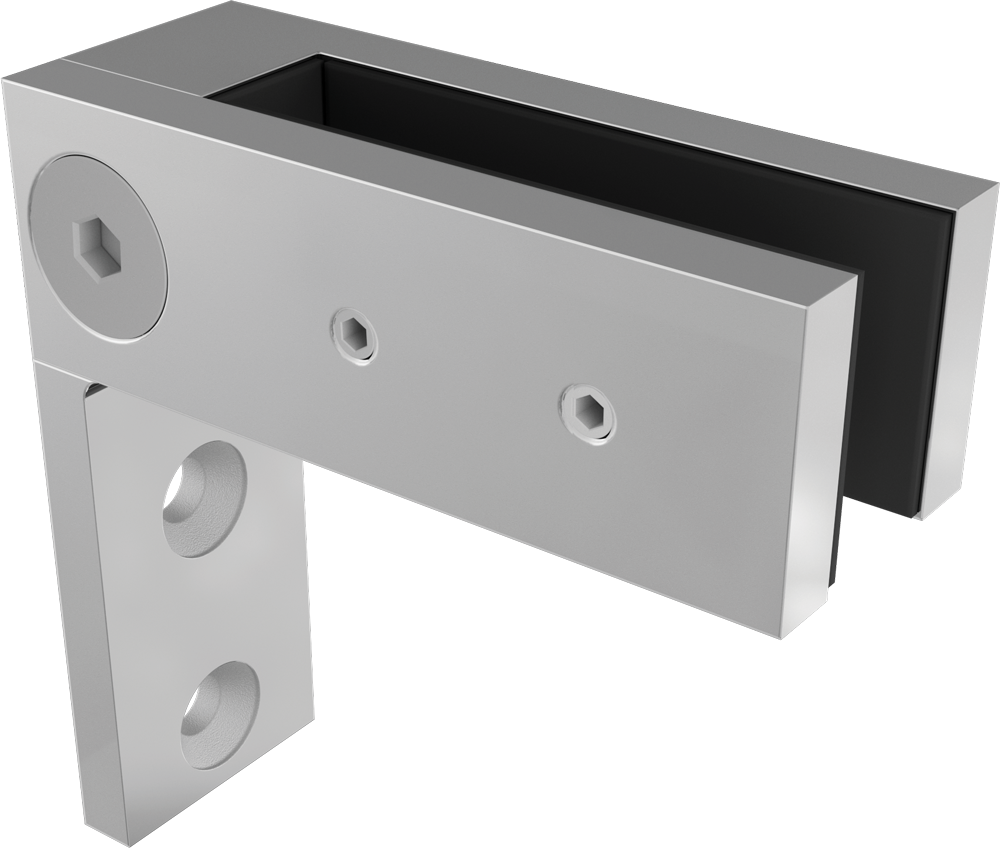

Wall to Glass Clamp | SS316 | 12mm Glass | 20-65mm Gap | Black, White, Satin & Polish

Where a glass panel meets a wall, post or solid surface the wall to glass clamp provides a clean, secure connection without drilling into the glass. The clamp fixes to the wall via two countersunk holes while the friction fit grub screw side clamps directly onto the glass panel - ready to install straight out of the box.

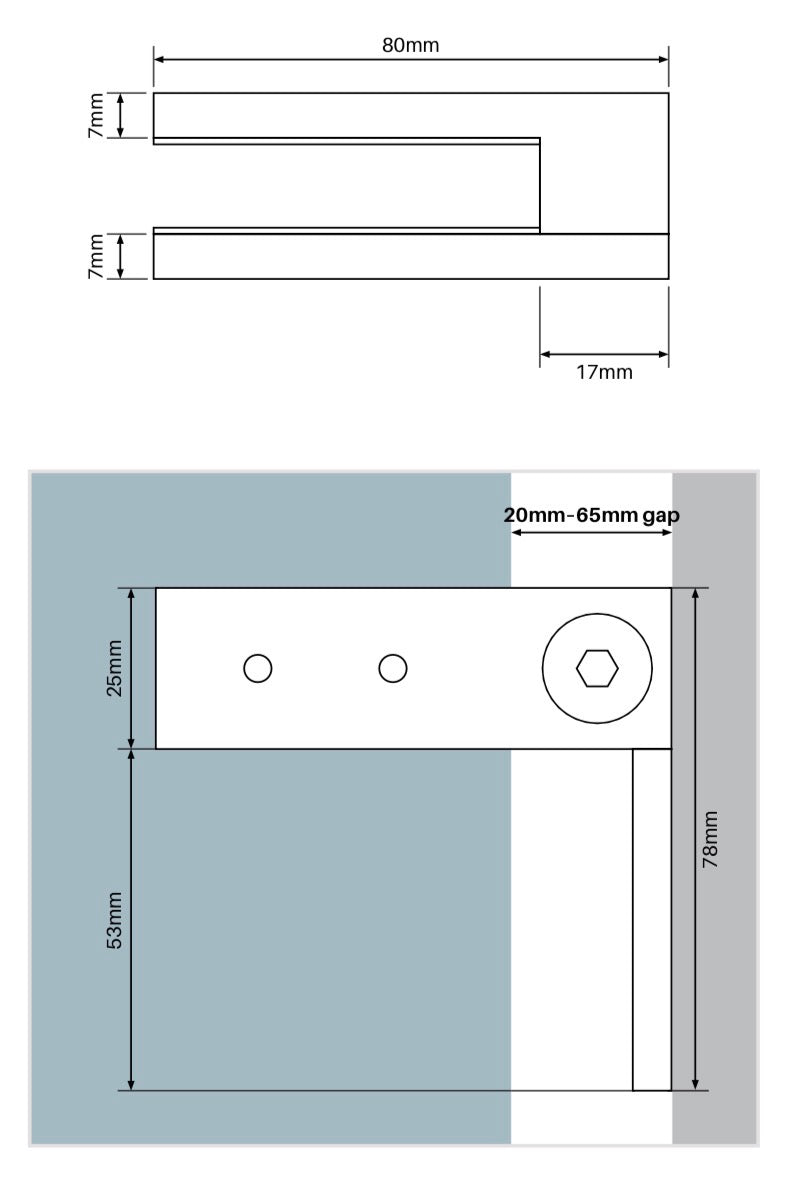

Suits panel gaps between 20mm and 65mm from the wall surface to the glass edge. At 80mm long and 25mm wide on the glass side with a 78mm total depth, the profile stays low and unobtrusive against the wall.

Specifications:

• Material: SS316 stainless steel
• Finish: Powder coat - black, white, satin and polish available
• Length: 80mm
• Width: 25mm on glass side
• Total depth: 78mm
• Glass slot: 7mm each side - suits 12mm toughened glass
• Gap coverage: Suits 20-65mm gap between wall and glass panel
• Wall fixing: 2 x countersunk holes plus 1 x grub screw hole
• Glass fixing: Friction fit - grub screws included
• Installation: Ready to install - no holes required in glass

Sold individually - order the quantity matching your wall connection count.

Not sure if the wall to glass clamp suits your installation? Send us a message with your wall to glass gap measurement and we’ll confirm the right clamp before you order.
